openFrameworksでアフィン変換する

openFrameworks OpenCV

アフィン変換を理解するために,openFrameworksでアフィン変換のパラメータをインタラクティブに変更できるプログラムを書いた.

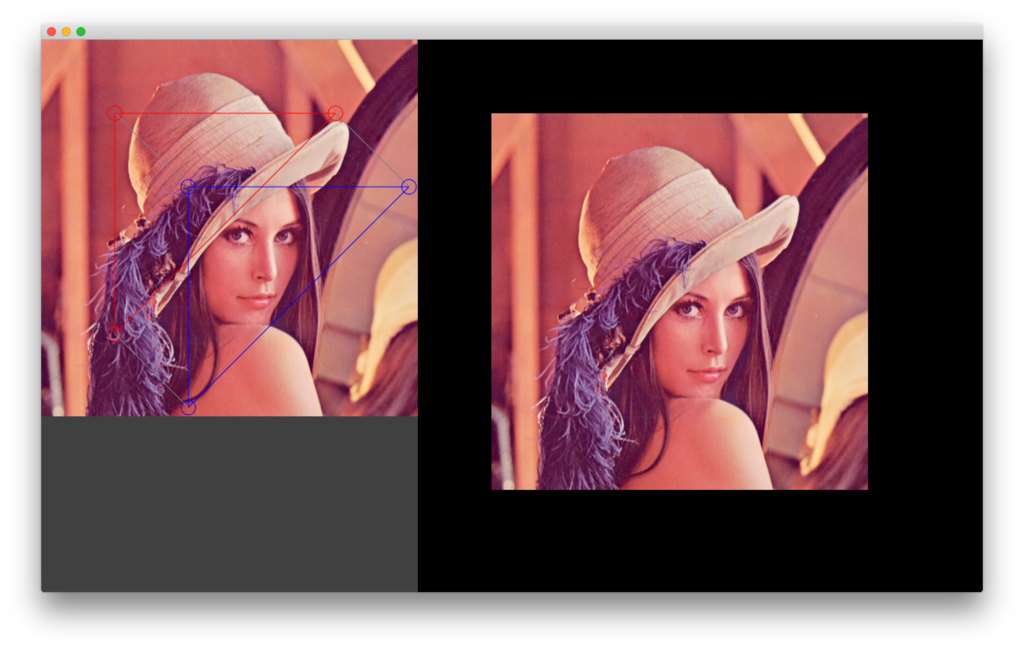

f:id:aa_debdeb:20160714111717p:plain

赤が変換元の3点,青が変換先の3点を表しており,マウスで移動させることができる.

main.cpp

#include "ofMain.h"
#include "ofApp.h"

//========================================================================
int main( ){
    ofSetupOpenGL(1536,1000,OF_WINDOW);         // <-------- setup the GL context

    // this kicks off the running of my app
    // can be OF_WINDOW or OF_FULLSCREEN
    // pass in width and height too:
    ofRunApp(new ofApp());

}
ofApp.h

#pragma once

#include "ofMain.h"
#include "ofxCv.h"

class ofApp : public ofBaseApp{

public:
    void setup();
    void update();
    void draw();

    void keyPressed(int key);
    void keyReleased(int key);
    void mouseMoved(int x, int y );
    void mouseDragged(int x, int y, int button);
    void mousePressed(int x, int y, int button);
    void mouseReleased(int x, int y, int button);
    void mouseEntered(int x, int y);
    void mouseExited(int x, int y);
    void windowResized(int w, int h);
    void dragEvent(ofDragInfo dragInfo);
    void gotMessage(ofMessage msg);

    ofImage srcImg, dstImg;
    cv::Mat srcMat, dstMat;
    cv::Point2f srcPt[3], dstPt[3];

    bool isHolding;
    cv::Point2f *heldPt;
};
ofApp.cpp

#include "ofApp.h"

using namespace ofxCv;
using namespace cv;

//--------------------------------------------------------------
void ofApp::setup(){
    ofBackground(64);

    srcImg.load("lena.png");
    srcMat =toCv(srcImg);

    srcPt[0] = Point2f(100, 100);
    srcPt[1] = Point2f(100, 400);
    srcPt[2] = Point2f(400, 100);
    dstPt[0] = Point2f(200, 200);
    dstPt[1] = Point2f(200, 500);
    dstPt[2] = Point2f(500, 200);

    isHolding = false;
}

//--------------------------------------------------------------
void ofApp::update(){

}

//--------------------------------------------------------------
void ofApp::draw(){

    Mat affineMat = getAffineTransform(srcPt, dstPt);
    warpAffine(srcMat, dstMat, affineMat, srcMat.size() * 2);

    toOf(dstMat, dstImg);
    dstImg.update();

    ofSetColor(255);
    srcImg.draw(0, 0);
    dstImg.draw(srcImg.getWidth(), 0);


    ofSetColor(128);
    ofDrawLine(srcPt[0].x, srcPt[0].y, dstPt[0].x, dstPt[0].y);
    ofDrawLine(srcPt[1].x, srcPt[1].y, dstPt[1].x, dstPt[1].y);
    ofDrawLine(srcPt[2].x, srcPt[2].y, dstPt[2].x, dstPt[2].y);


    ofSetColor(255, 0, 0);
    ofNoFill();
    ofDrawTriangle(srcPt[0].x, srcPt[0].y, srcPt[1].x, srcPt[1].y, srcPt[2].x, srcPt[2].y);
    for(int i = 0; i < 3; i++){
        ofDrawEllipse(srcPt[i].x, srcPt[i].y, 20, 20);
    }
    ofSetColor(0, 0, 255);
    ofNoFill();
    ofDrawTriangle(dstPt[0].x, dstPt[0].y, dstPt[1].x, dstPt[1].y, dstPt[2].x, dstPt[2].y);
    for(int i = 0; i < 3; i++){
        ofDrawEllipse(dstPt[i].x, dstPt[i].y, 20, 20);
    }

}

//--------------------------------------------------------------
void ofApp::keyPressed(int key){

}

//--------------------------------------------------------------
void ofApp::keyReleased(int key){

}

//--------------------------------------------------------------
void ofApp::mouseMoved(int x, int y ){

}

//--------------------------------------------------------------
void ofApp::mouseDragged(int x, int y, int button){
    if(isHolding){
        heldPt->x = mouseX;
        heldPt->y = mouseY;
    }
}

//--------------------------------------------------------------
void ofApp::mousePressed(int x, int y, int button){
    for(int i = 0; i < 3; i++){
        if(ofDist(mouseX, mouseY, srcPt[i].x, srcPt[i].y) < 20){
            isHolding = true;
            heldPt = &srcPt[i];
            return;
        }
    }
    for(int i = 0; i < 3; i++){
        if(ofDist(mouseX, mouseY, dstPt[i].x, dstPt[i].y) < 20){
            isHolding = true;
            heldPt = &dstPt[i];
            return;
        }
    }
}

//--------------------------------------------------------------
void ofApp::mouseReleased(int x, int y, int button){
    isHolding = false;
}

//--------------------------------------------------------------
void ofApp::mouseEntered(int x, int y){

}

//--------------------------------------------------------------
void ofApp::mouseExited(int x, int y){

}

//--------------------------------------------------------------
void ofApp::windowResized(int w, int h){

}

//--------------------------------------------------------------
void ofApp::gotMessage(ofMessage msg){

}

//--------------------------------------------------------------
void ofApp::dragEvent(ofDragInfo dragInfo){

}

openFrameworks/affineTest at master · aa-debdeb/openFrameworks
