Pure Dataで三角波を鳴らす

Pure Data

Pure Dataで三角波を鳴らすためのパッチを作成しました。

f:id:aa_debdeb:20160816201255p:plain

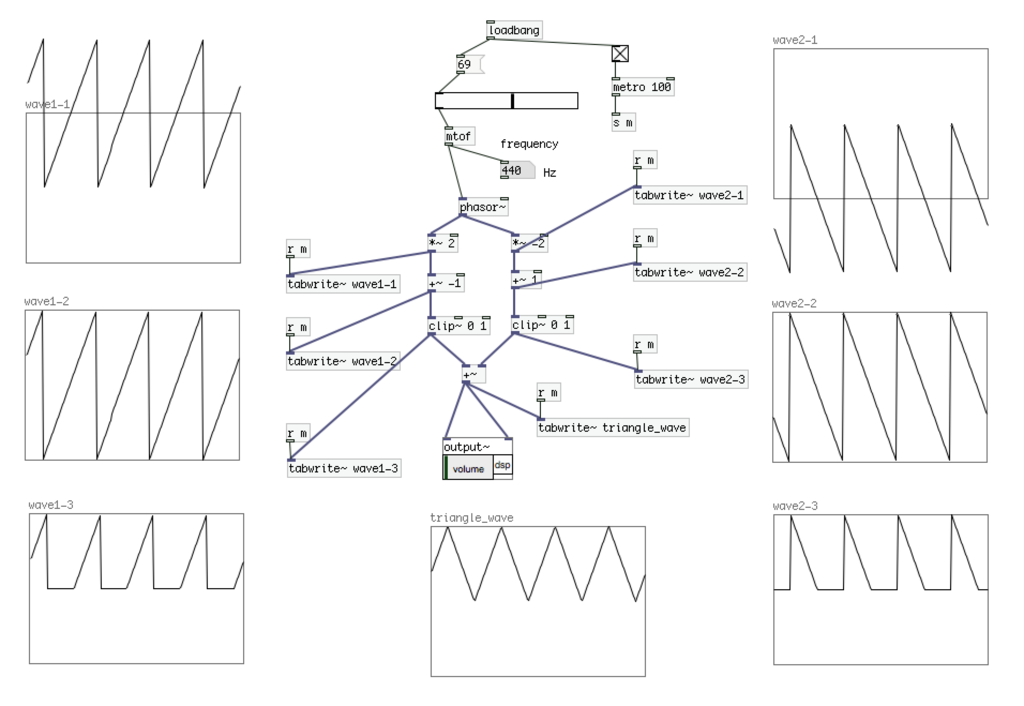

三角波はのこぎり波「phasor~」を合成することで生成します。 わかりづらいので、生成過程の各ステップの波形も見れるようにしました。

ソースコード
#N canvas 102 26 1178 736 10;
#X obj 280 97 phasor~;
#X obj 423 -15 metro 100;
#X obj 423 -45 tgl 15 0 empty empty empty 17 7 0 10 -262144 -1 -1 1
1;
#X floatatom 319 63 5 0 0 0 - - -;
#X obj 261 -1 hsl 128 15 0 127 0 0 empty empty empty -2 -8 0 10 -262144
-1 -1 6900 1;
#X obj 267 31 mtof;
#X obj 265 321 output~;
#X obj 251 131 *~ 2;
#X obj 329 131 *~ -2;
#X obj 329 165 +~ 1;
#X obj 251 168 +~ -1;
#X obj 283 253 +~;
#X obj 251 208 clip~ 0 1;
#X obj 329 207 clip~ 0 1;
#X obj 353 303 tabwrite~ triangle_wave;
