OpenCVで特徴点をもとに画像をボロノイ分割・ドロネー分割する
この前に,ランダムに選んだ母点をもとに画像をボロノイ分割,ドロネー分割して,モザイク画像を生成した.
今回は,母点の粗密がいい感じになることを期待して,画像の特徴点をもとに分割する. それぞれの特徴検出器のパラメータ設定は適当.
固有値に基づく特徴点検出

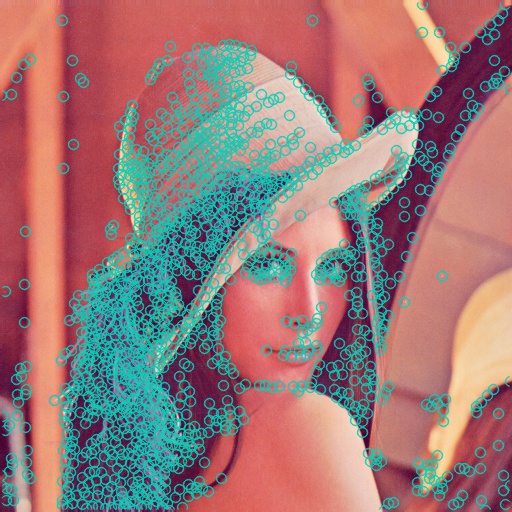

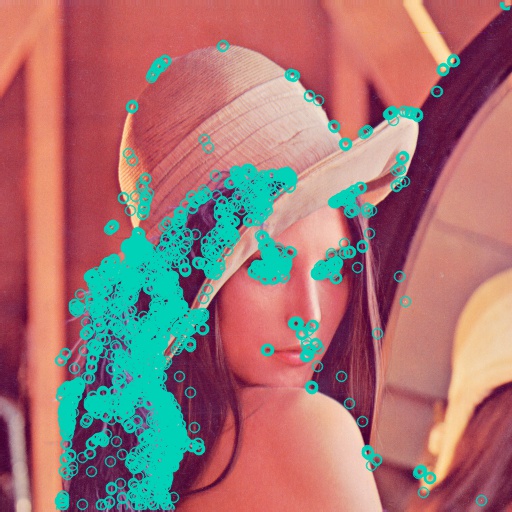

特徴点

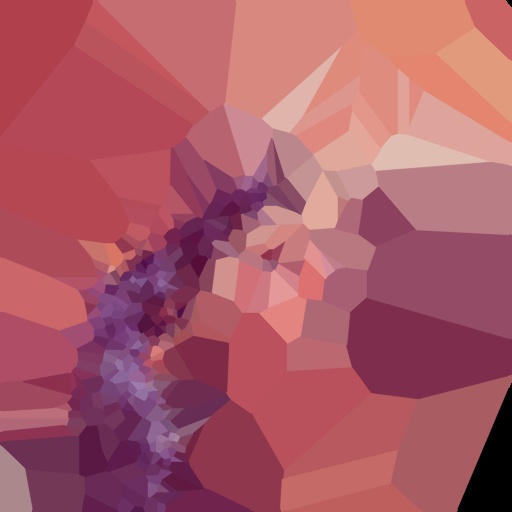

ボロノイ図

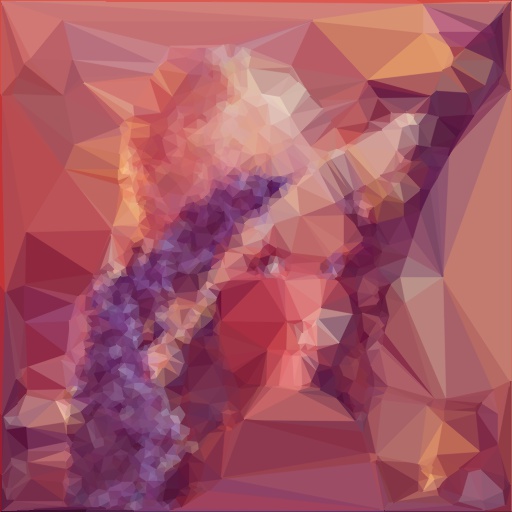

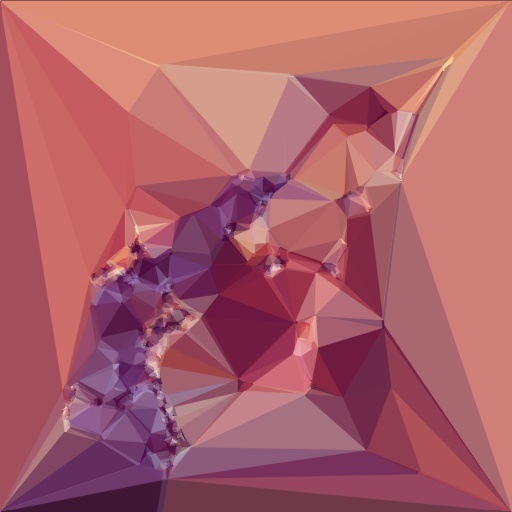

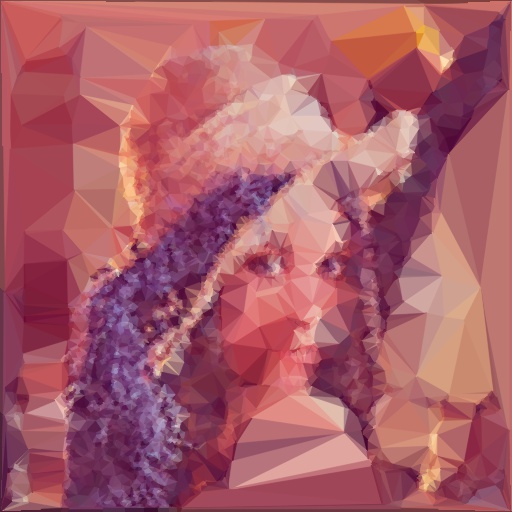

ドロネー分割
Harris検出器に基づく特徴点検出

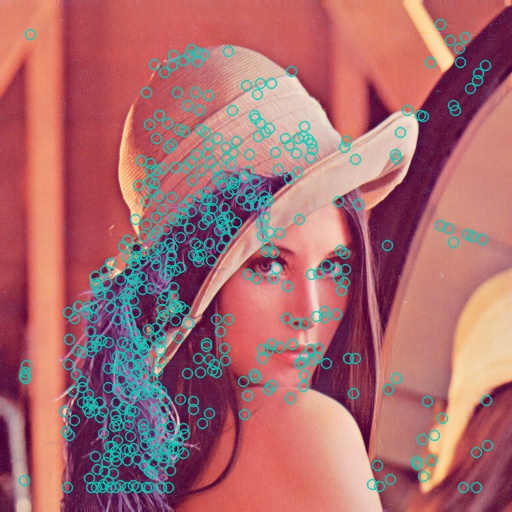

特徴点
ボロノイ図

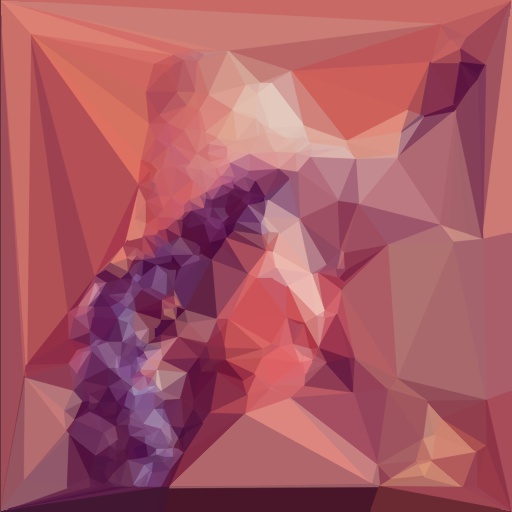

ドロネー分割
FAST検出器に基づく特徴点検出

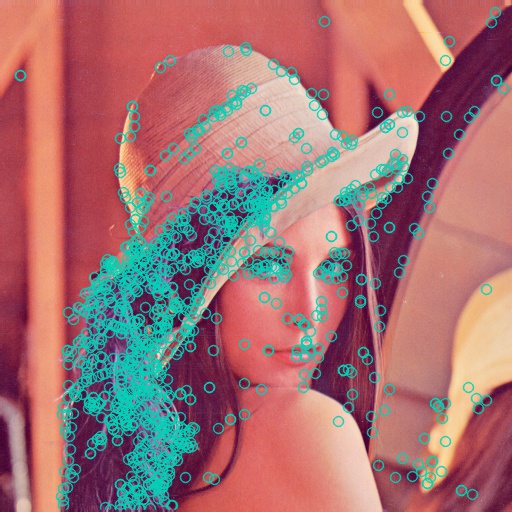

特徴点
ボロノイ図
ドロネー分割
Star検出器に基づく特徴点検出

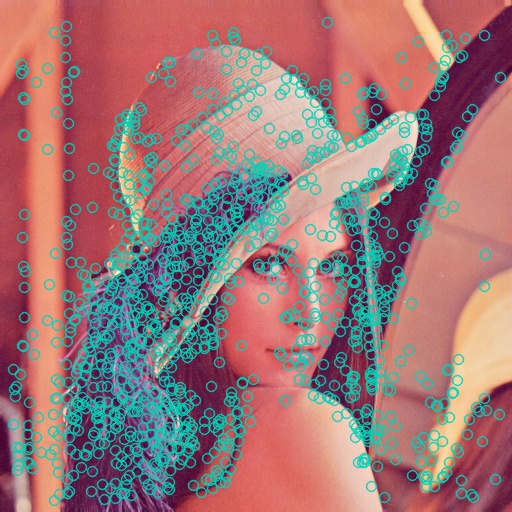

特徴点
ボロノイ図

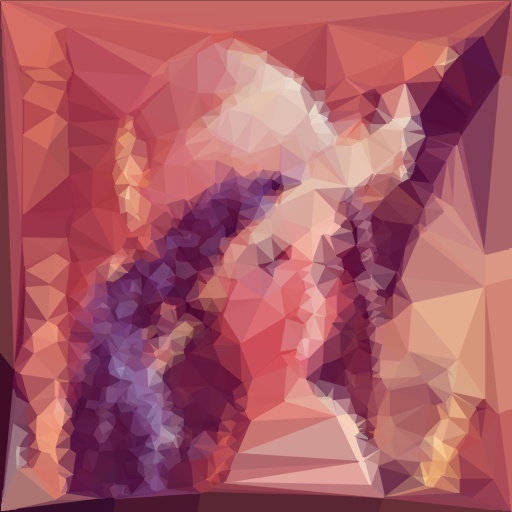

ドロネー分割
SIFT検出器に基づく特徴点検出
特徴点
ボロノイ図

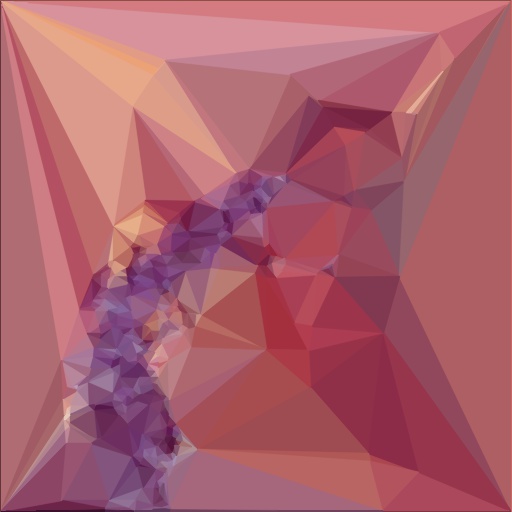

ドロネー分割
SURF検出器に基づく特徴点検出
特徴点

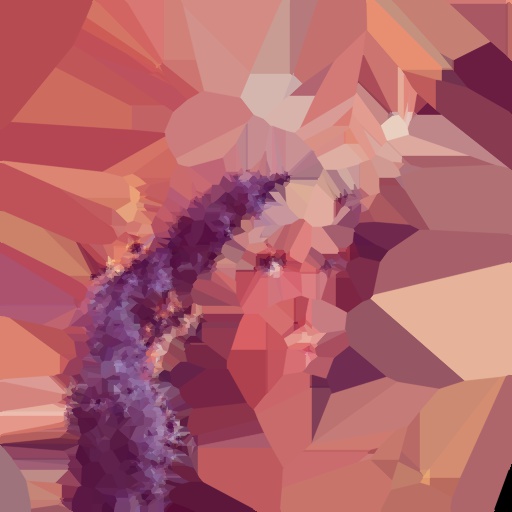

ボロノイ図

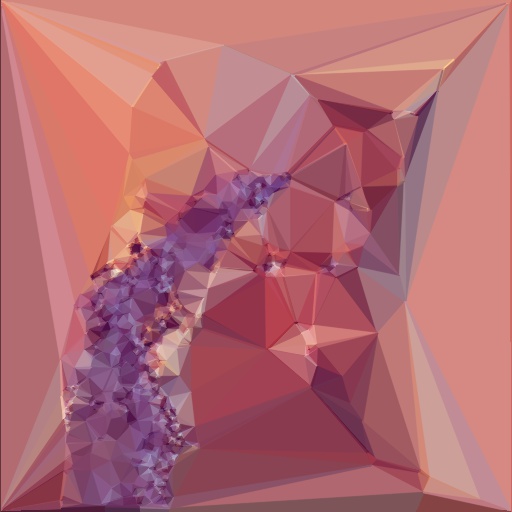

ドロネー分割
MSER検出器に基づく特徴点検出

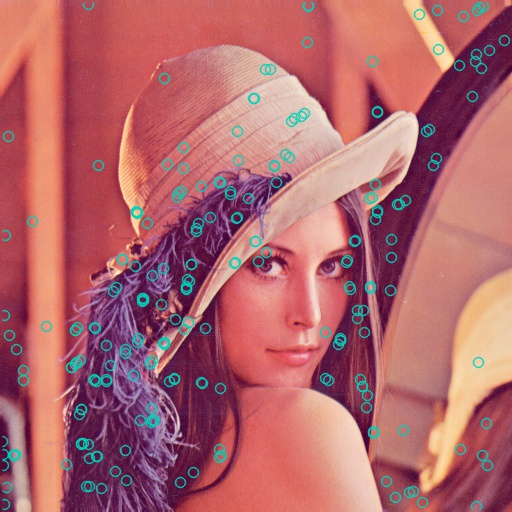

特徴点
ボロノイ図
ドロネー分割
ORB検出器に基づく特徴点検出
特徴点

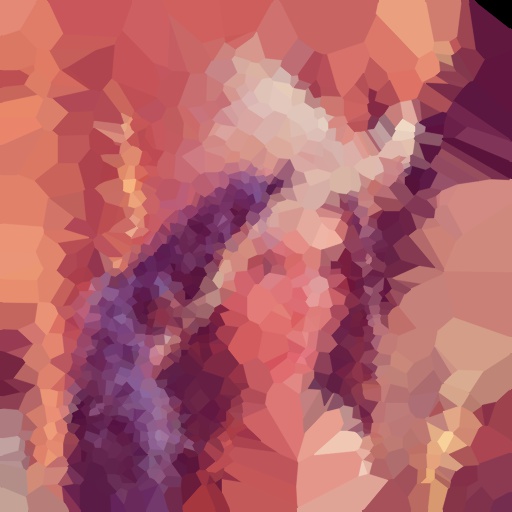

ボロノイ図
ドロネー分割
FAST検出器+Gridアダプタ に基づく特徴点検出

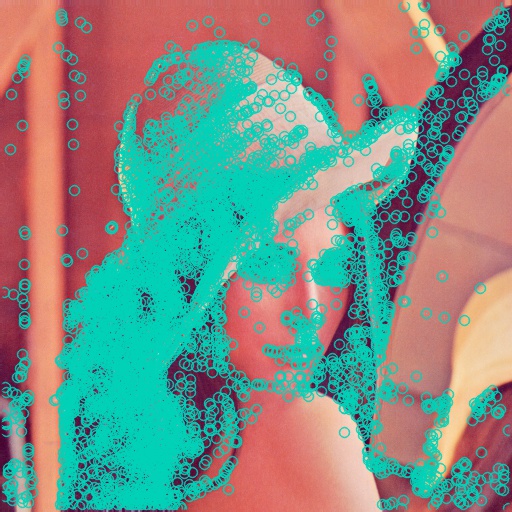

特徴点

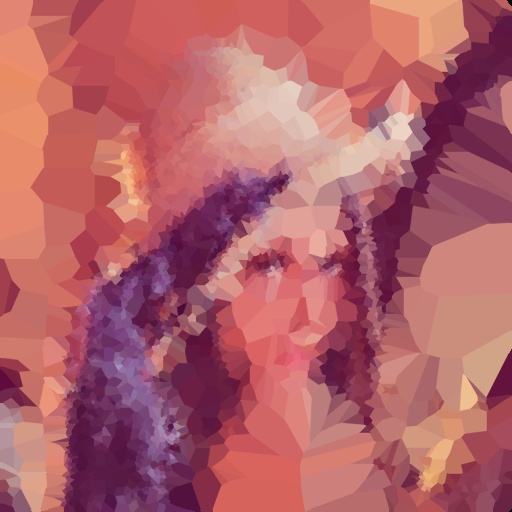

ボロノイ図

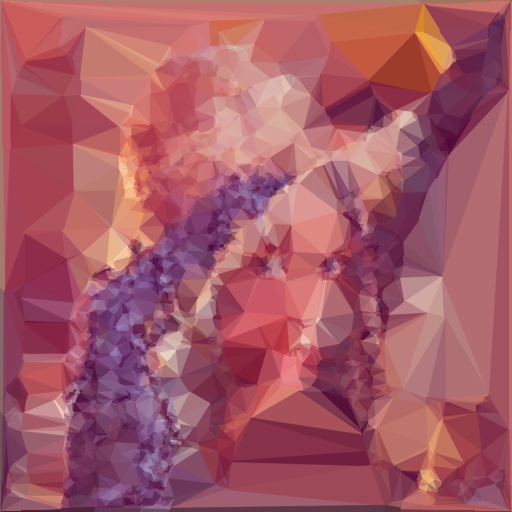

ドロネー分割
FAST検出器+Pyramidアダプタ に基づく特徴点検出
特徴点
ボロノイ図
ドロネー分割
main.cpp
#include
#include "opencv2/opencv.hpp"
#include "opencv2/nonfree/nonfree.hpp"
int main(int argc, const char * argv[]) {
cv::Mat img = cv::imread("lena.jpg", 1);
if(img.empty()) return -1;
cv::Mat gray_img;
cv::cvtColor(img, gray_img, CV_BGR2GRAY);
cv::normalize(gray_img, gray_img, 0, 255, cv::NORM_MINMAX);
std::vector keypoints;
std::vector::iterator itk;
cv::GoodFeaturesToTrackDetector detector(1600, 0.01, 5, 3); // 固有値に基づく特徴点検出
// cv::GoodFeaturesToTrackDetector detector(1600, 0.01, 5, 3, true); // Harris検出器に基づく特徴点検出
// cv::FastFeatureDetector detector(25, false); // FAST検出器に基づく特徴点検出
// cv::StarFeatureDetector detector(16, 5); // Star検出器に基づく特徴点検出
// cv::SiftFeatureDetector detector(0.001, 3.0); // SIFT検出器に基づく特徴点検出
// cv::SurfFeatureDetector detector(100); // SURF検出器に基づく特徴点検出
// cv::MserFeatureDetector detector; // MSER検出器に基づく特徴点検出
// cv::OrbFeatureDetector detector(1500); // ORB検出器に基づく特徴点検出
// cv::GridAdaptedFeatureDetector detector(new cv::FastFeatureDetector(10), 5000, 5, 5); // FAST検出器+Gridアダプタ に基づく特徴点検出
// cv::PyramidAdaptedFeatureDetector detector(new cv::FastFeatureDetector(10), 3); // FAST検出器+Pyramidアダプタ に基づく特徴点検出
detector.detect(img, keypoints);
cv::Mat feature_img = img.clone();
cv::Subdiv2D subdiv;
subdiv.initDelaunay(cv::Rect(0, 0, img.rows, img.cols));
std::vector points;
for(itk = keypoints.begin(); itk!=keypoints.end(); ++itk) {
cv::circle(feature_img, itk->pt, 5, cv::Scalar(184, 210, 0), 1, CV_AA);
points.push_back(itk->pt);
}
points.push_back(cv::Point2f(0, 0));
points.push_back(cv::Point2f(img.rows - 1, 0));
points.push_back(cv::Point2f(0, img.cols - 1));
points.push_back(cv::Point2f(img.rows - 1, img.cols - 1));
subdiv.insert(points);
// ボロノイモザイクの作成
std::vector idx;
std::vector> facetLists;
std::vector facetCenters;
subdiv.getVoronoiFacetList(idx, facetLists, facetCenters);
cv::Mat voronoi_img = cv::Mat::zeros(img.rows, img.cols, CV_8UC3);
for(auto facetList = facetLists.begin(); facetList != facetLists.end(); facetList++){
cv::Point *vertices = new cv::Point[facetList->size()];
cv::Vec3f polyColor = cv::Vec3f(0, 0, 0);
int polyColorNum = 0;
for(int i = 0; i < facetList->size(); i++){
cv::Point vertex = facetList->at(i);
vertices[i] = vertex;
if(0 <= vertex.x && vertex.x < img.rows && 0 <= vertex.y && vertex.y < img.cols){
polyColor += img.at(vertex.y, vertex.x);
polyColorNum++;
}
}
polyColor /= float(polyColorNum);
cv::fillConvexPoly(voronoi_img, vertices, int(facetList->size()), cv::Scalar(polyColor[0], polyColor[1], polyColor[2]), CV_AA);
delete[] vertices;
}
// ドロネーモザイクの作成
std::vector triangles;
subdiv.getTriangleList(triangles);
cv::Mat dalaunay_img = cv::Mat::zeros(img.rows, img.cols, CV_8UC3);
for(auto it = triangles.begin(); it != triangles.end(); it++)
{
cv::Vec6f &vec = *it;
cv::Point vertices[3];
vertices[0] = cv::Point(vec[0], vec[1]);
vertices[1] = cv::Point(vec[2], vec[3]);
vertices[2] = cv::Point(vec[4], vec[5]);
cv::Vec3f polyColor = cv::Vec3f(0, 0, 0);
polyColor += img.at(vertices[0].y, vertices[0].x);
polyColor += img.at(vertices[1].y, vertices[1].x);
polyColor += img.at(vertices[2].y, vertices[2].x);
polyColor /= float(3);
cv::fillConvexPoly(dalaunay_img, vertices, 3, cv::Scalar(polyColor[0], polyColor[1], polyColor[2]), CV_AA);
}
cv::imshow("feature", feature_img);
cv::imshow("voronoi", voronoi_img);
cv::imshow("dalaunay", dalaunay_img);
cv::waitKey(0);
}
